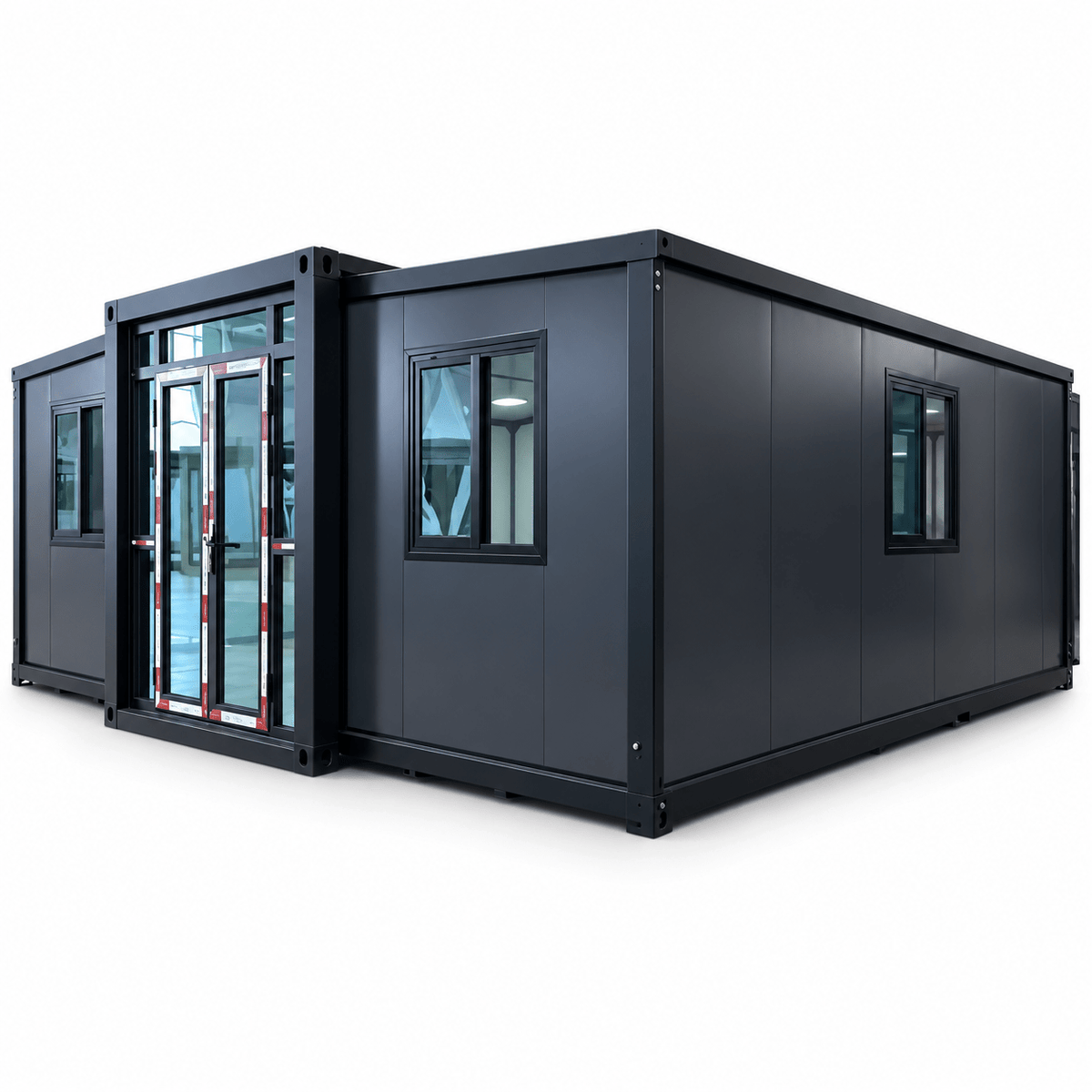

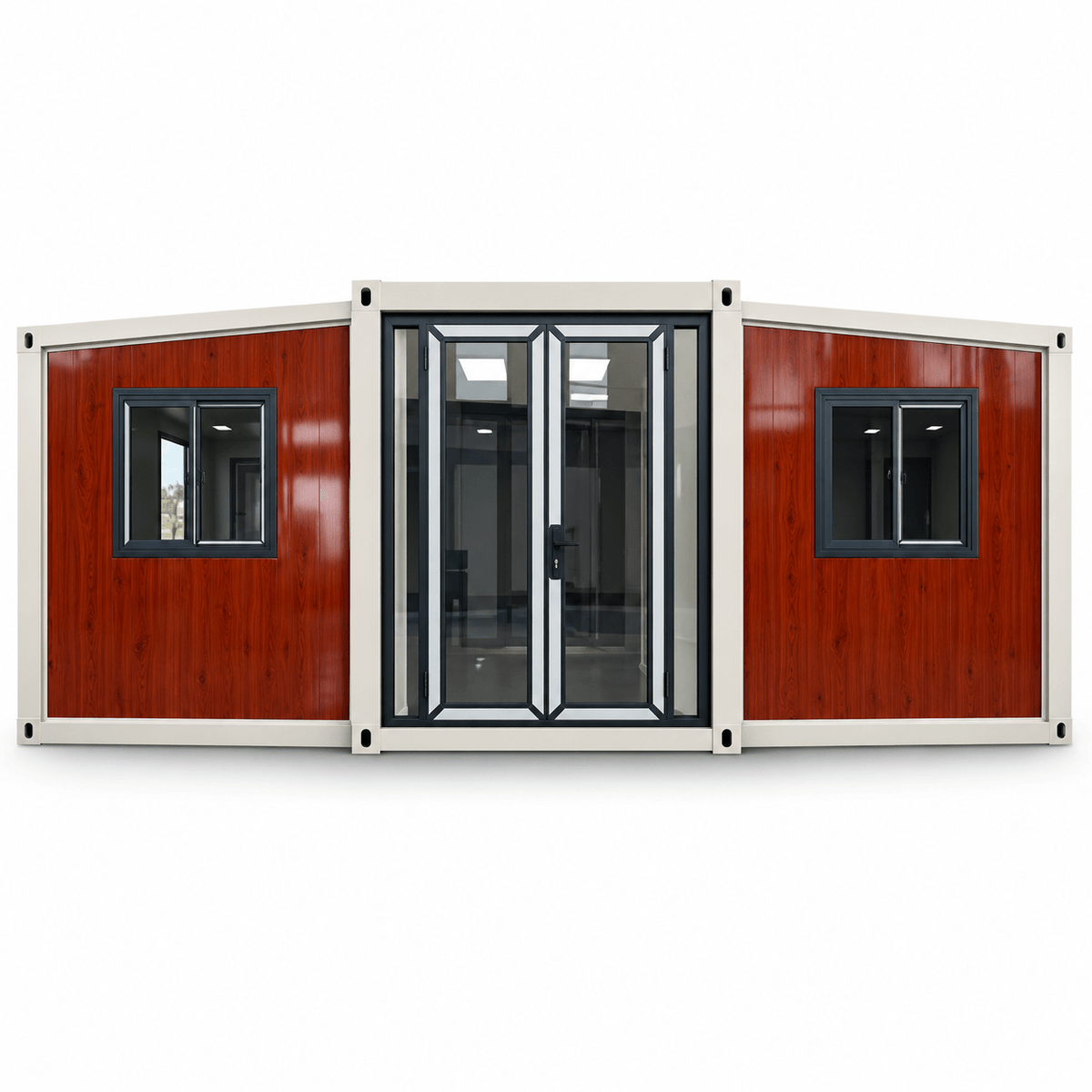

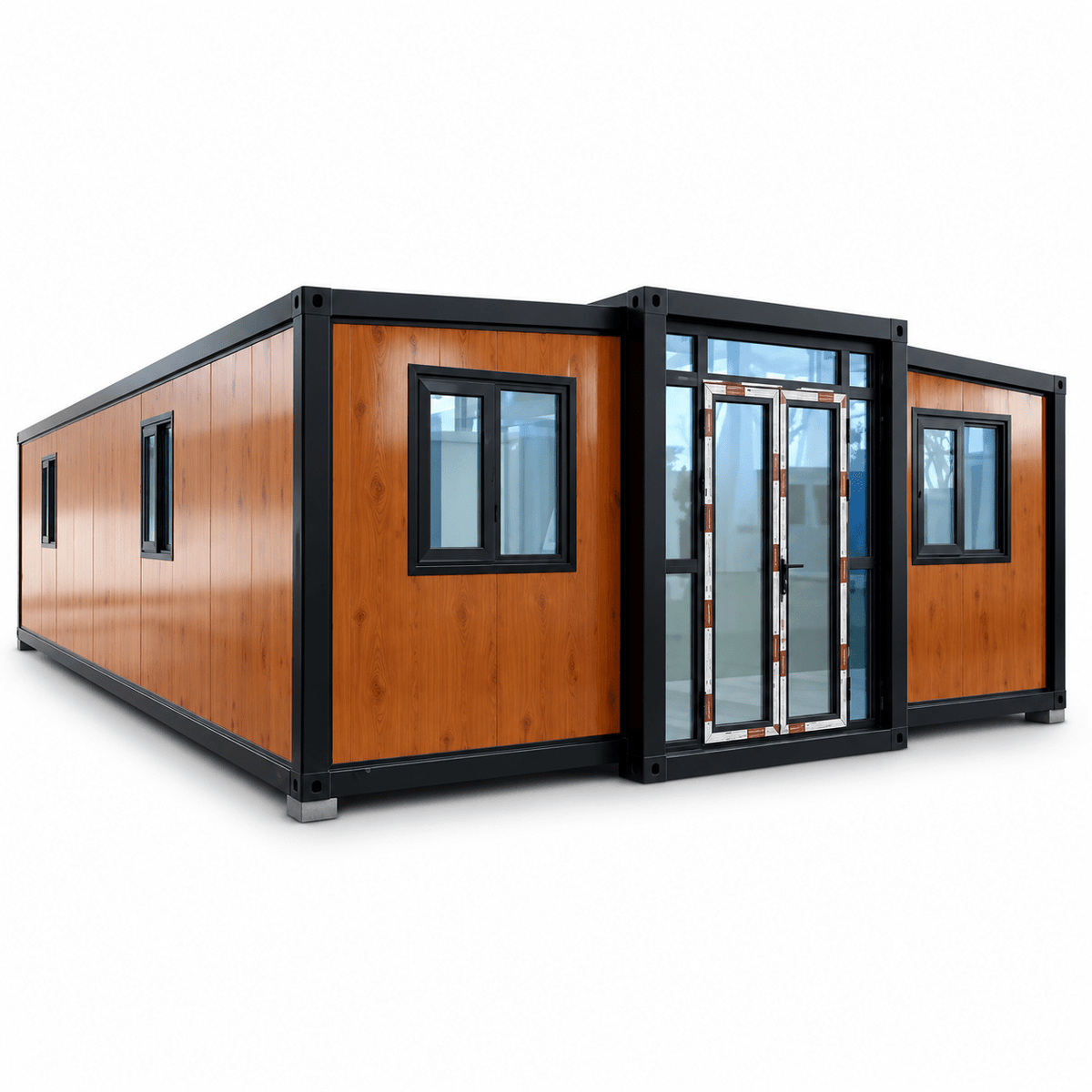

This 20ft flat roof container house features 2 bedrooms, 1 living room, and 1 bathroom in a fully furnished layout. Designed for comfortable living and fast installation, it includes finished interiors, doors, windows, electrical systems, and customizable options for homes, guest houses, and temporary accommodation.
General Specifications
| Product Type | 20ft flat roof expandable container house with two folding wings |
|---|---|
| Layout | 2 bedrooms, 1 living room, 1 bathroom |
| Finish | Fully furnished model (datasheet designation; individual fittings are listed below) |
| Unfolded Dimensions (L × W × H) | 5900 × 6380 × 2450 mm |
| Internal Dimensions (L × W × H) | 5740 × 6220 × 2250 mm |
| Folded Dimensions (L × W × H) | 5900 × 2250 × 2450 mm |
| Estimated Total Net Weight | 4 tonnes |
| Service Life | 30 years, as stated in the datasheet; varies with the usage environment |
| Warranty | 3-year warranty for export units, as stated in the datasheet |
| Wind Resistance | Level 10, as stated in the datasheet; rating standard not specified |
| Earthquake Resistance | Level 8, as stated in the datasheet; rating standard not specified |
| Thermal Insulation / Temperature Range | -35°C to +45°C, as stated in the datasheet; test conditions not specified |
| Waterproofing | Level 1, as stated in the datasheet; rating standard not specified |
Main Steel Frame
| Frame Material | Fully galvanized steel (Chinese national standard, as stated in the datasheet) |
|---|---|
| Top Side Beams | 80 × 100 × 3.0 mm galvanized square tube with 3.0 mm bent steel components |
| Top Beam | 80 × 100 × 3.0 mm galvanized square tube with 3.0 mm bent steel components |
| Top Longitudinal Secondary Beams | 30 × 50 × 1.5 mm galvanized square tube |
| Top Transverse Secondary Beams | 30 × 30 × 1.5 mm galvanized square tube |
| Bottom Side Beams | 80 × 100 × 3.0 mm galvanized square tube with 3.0 mm bent steel components |
| Bottom Beams | 80 × 100 × 3.0 mm galvanized square tube with 3.0 mm bent steel components |
| Bottom Secondary Beams | 40 × 80 × 1.5 mm galvanized square tube |
| Customized Lifting Head | Steel portable anti-drop hook; designation “12.8” as listed in the datasheet (meaning not specified) |
| Steel Columns | 80 × 140 × 3.0 mm galvanized square tube with 3.0 mm bent steel components |
| Bottom Frame Reinforcement | Reinforced bottom frame; spacing: 406 mm |
| Weld Finishing | Polishing after welding to improve powder coating adhesion |
| Protective Coating | Double-layer fluorocarbon paint |
| Steel Processing Compliance | The datasheet states that cutting, forming, drilling, welding and corrosion protection comply with EU CE certification; certification standard and certificate number are not provided |
Expandable Wing Frame
| Frame Material | Fully galvanized steel (Chinese national standard, as stated in the datasheet) |
|---|---|
| Top Frame | 50 × 100 × 2.5 mm galvanized square tube with 3.0 mm bent steel components |
| Top Frame — Angle Iron | L30 × 30 × 1.5 mm angle iron |
| Bottom Main Frame | 80 × 100 × 3.0 mm galvanized square tube with 3.0 mm bent steel components |
| Bottom Secondary Beams | 40 × 80 × 1.5 mm galvanized square tube |
| Folding Hinges | 130 mm manganese steel hinges |
Roof & Wall Panels
| Main Ceiling / Roof Assembly | 50 mm graphite EPS color-coated steel composite panel with 0.3 mm steel facing on both sides; core specification: 12 kg (unit basis not specified). Plus a ceiling support framework with 12 mm OSB board, 8 mm single integrated anti-collision wood veneer panel, and 0.5 mm nano insulation board |
|---|---|
| Wing Roof Panels | 100 mm graphite anti-collision wood veneer panel with a single 0.35 mm facing; core specification: 22 kg (unit basis not specified); plus 0.5 mm nano heat-insulation board |
| Wall Panels | 50 mm graphite anti-collision wood veneer panel with a single 0.35 mm facing |
| Exterior Wall Finish | 0.35 mm decorative embossed aluminum panel |
| Internal Partition Panels | 50 mm graphite double-sided anti-collision wood veneer panel; stated density: 22 kg (unit basis not specified); Class B flame retardant (classification standard not specified) |
Flooring
| Subfloor | Bamboo plywood; width: 1220 mm; thickness: 18 mm |
|---|---|
| Decorative Flooring | 6 mm SPC stone-plastic flooring with acoustic pad |
| Flooring Options | BD60101 / BD60107 / BD60108; color optional |
Doors & Windows
| Interior Door | 2 sets of aluminum-wood doors; 800 × 2100 mm |
|---|---|
| Entrance Door | 1 set of thermally broken aluminum double door with grid strips; 1120 × 2240 mm; 20 mm low threshold |
| Entrance Door Finish | Black or white frame; ultra-clear glass; grille color matches the frame |
| Main Windows | 6 sets; thermally broken aluminum; 1000 × 1200 mm; top-hinged awning opening; aluminum grid strips and ultra-clear glass |
| Window Finish / Screens | Black or white; grid strips match the frame color; diamond mesh insect screens included |
Bathroom
| Bathroom Door | Titanium-magnesium alloy door with ultra-narrow frame and white frosted glass. The datasheet lists both a single door and a sliding door; final configuration requires confirmation |
|---|---|
| Shower | Multifunction shower head |
| Washbasin | Washbasin cabinet and faucet |
| Mirror Cabinet | Smart mirror cabinet with supplementary lighting |
| Toilet | Smart toilet |
| Shelf | Folding shelf |
| Floor Drain | Square, large-diameter anti-odor floor drain |
| Water Supply / Drainage | Water supply and drainage pipes; external water pipes coated with asphalt oil to resist weathering and corrosion |
| Ceiling & Wall Finish | SPC stone-crystal wall panels |
| Bathroom Floor | Stone-plastic flooring; sintered stone in the shower area |
| Bathroom Window | Thermally broken aluminum outward-opening awning window; frosted glass; 1000 × 500 mm; diamond mesh insect screen included |
| Insulation Layer | Phenolic insulation layer |
| Bottom Covering | 1.2 mm galvanized sheet |
Electrical System
| Electrical Components | Branded wires, sockets, switches and lighting fixtures; Chinese national standard configuration, as stated in the datasheet |
|---|---|
| Main Ceiling Light | Ultra-thin round lamp; diameter: 400 mm; white light; 36 W |
| Additional Lighting | Bullseye / spotlight fixtures; Bull and NVC are named with a 3C certification reference in the datasheet; brand allocation is not specified |
| Outdoor Wall Lights | 2 units of the first style shown in the datasheet; a second style is also shown, sized 240 × 520 × 240 mm (W × H × thickness) |
| Incoming Cable Cross-Section | 6 mm² |
| Air-Conditioner Socket Cable Cross-Section | 4 mm² |
| General Socket Cable Cross-Section | 2.5 mm² |
| Lighting Cable Cross-Section | 1.5 mm² |
| Roof Wiring | Routed through PVC conduit |
| External Power Inlet | Industrial plug (Chinese national standard, as stated in the datasheet) |
Plumbing & Installation Accessories
| Plumbing | Hot and cold water pipes, drainage pipes and sewage pipes; Chinese national standard configuration, as stated in the datasheet |
|---|---|
| Water Supply / Drainage System | Completed system shown in the datasheet |
| Expansion Assistance | 2 hand-cranked winches |
| Included Accessories | Floor molding strips, ceiling panels, structural adhesive, nail-free adhesive, waterproof tape, caulking gun, doorway accessories, support rods and lifting-head covers |
